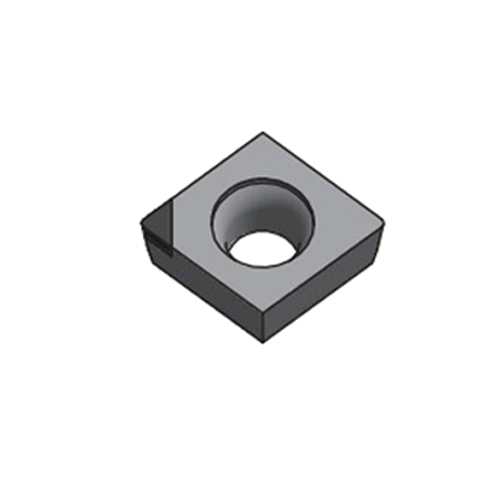

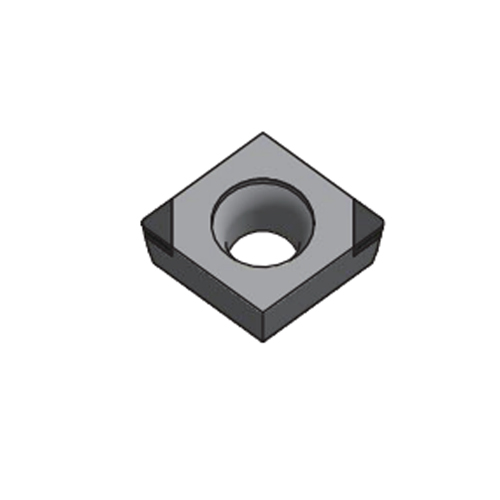

Worldia - CN Type Polycrystalline Diamond (PCD) Wiper Insert - 80°

Model: CN type
Brand: Worldia
Availability: Delivery time 15days
Place of origin: Beijing,China
Capacity(Monthly): 20,000PCS
Online Inquiry PDF Format
Description Material Introduction Specifications Special Focus

APPLICATIONS

PCD tools are limited to non-ferrous materials, such as high-silicon aluminium, metal matrix composites (MMC) and carbon fibre reinforced plastics (CFRP).
PCD with flood coolant can also be used in titanium super-finishing applications.

  • Aluminum and aluminum alloys
  • Copper, brass and bronze alloys
  • Zinc and magnesium alloys
  • Carbon Fiber
  • Epoxy resins
  • Plastics
  • Fiberglass composites
  • Graphite composites



PRODUCT USAGE

According to grain size and features of diamond,four types of PCD material,
i.e PD01E / PD10E / PD32E / CVDD are listed as below.


P
M
K
N
S
H
Material PD01E PD10E PD32E CVDD

MATERIAL INTRODUCTION

Material Grain size Features Application
PD01E 1 PD01E fine grain size PCD material(1μm) is suitble for finishing applications.Its high impart resistance and high abrasive resistance are no less than that of rough grade of PCD. PD01E has excellent chip resistance is suitable for the roughing and interrupt cutting aluminium alloys.This grade is also commonly used for non-ferrous finishing applications.Other successful applications include machining of wood,MDF.
PD10E 10 PD10E is the universal grade in the market.It`s the first choice for many applications where a good balance of toughness and wear resistance are required. This Grade is commonly used for non-ferrous finishing applications.Other successful applications include machining of wood,MDF.The machining of low-medium content silicon aluminium alloys,carbide,hard rubber,graphite and so on.
PD32E 2-30 PD32E has a unique combination of wear resistance,edge strenth and edge quality.It contains a carefully sorted mix of micron diamond(Between 2 - 30 μm).The combination of these particle sizes and a specifically developed high pressure sintering process produces a structure with extreme abrasion resistance and good thermal stability. Application areas include the machining of abrasive workpiece such as MMC,high silicon aluminium alloys as well as for the machining of carbide,hard rubber,graphite and other applications.
CVDD - CVDD is a pure carbon material without binder with extreme abrasion resistance and good thermal suitability.Due to its perfect cutting edge suitable fro appications where mirror finishes are required. Application areas include the machining of abrasive workpiece such as MMC,high silicon aluminium alloys as well as for the machining of carbide,hard rubber,graphite and other applications.

SPECIFICATIONS

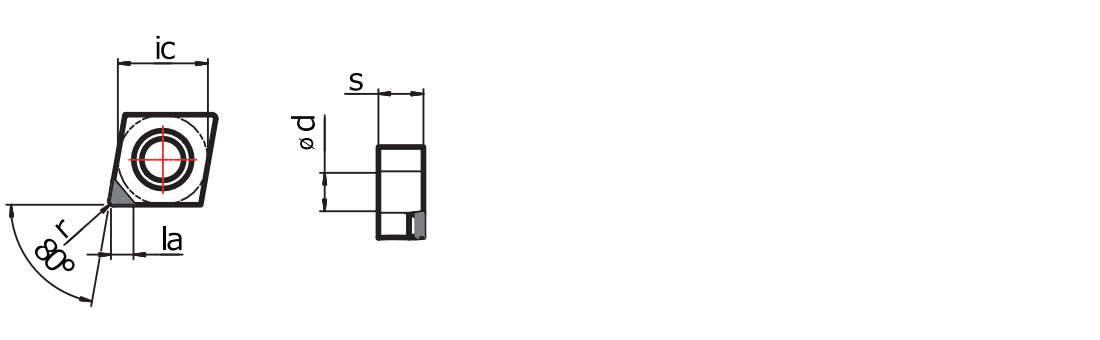

      Grade       ic φd s r la
ISO catalog number ANSI catalog number Tip Shape PD01E PD10E PD32E CVDD mm mm mm mm mm
CNGA120402-1N P00P00 CNGA43(0.5)-1N P00P00 CBWG25S   12.7 5.16 4.76 0.2 2.5
CNGA120404-1N P00P00 CNGA43 1-1N P00P00 CBWG25S   12.7 5.16 4.76 0.4 2.5
CNGA120408-1N P00P00 CNGA43 2-1N P00P00 CBWG25S   12.7 5.16 4.76 0.8 2.5
CNGA120402-1N P00P00 CNGA43(0.5)-1N P00P00 SLWG25S       12.7 5.16 4.76 0.2 2.5
CNGA120404-1N P00P00 CNGA43 1-1N P00P00 SLWG25S       12.7 5.16 4.76 0.4 2.5
CNGA120408-1N P00P00 CNGA43 2-1N P00P00 SLWG25S       12.7 5.16 4.76 0.8 2.5
CNGA120402-2N P00P00 CNGA43(0.5)-2N P00P00 CBWG25S   12.7 5.16 4.76 0.2 2.5
CNGA120404-2N P00P00 CNGA43 1-2N P00P00 CBWG25S   12.7 5.16 4.76 0.4 2.5
CNGA120408-2N P00P00 CNGA43 2-2N P10P00 CBWG25S   12.7 5.16 4.76 0.8 2.5
